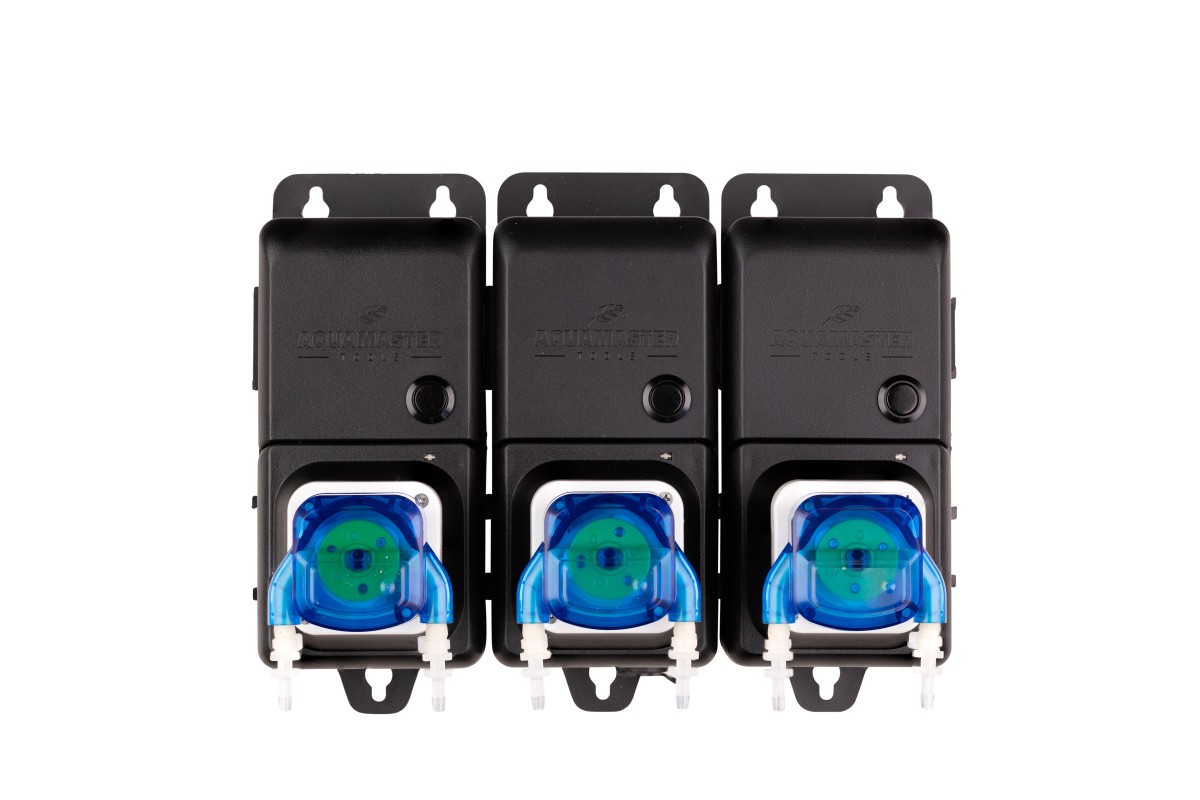

C30 pump unit 3x peristaltic pump set for nutrient dosing
The C30 is a dosing unit with three peristaltic pumps, designed for accurate nutrient dosing. It is only suitable for EC dosing and not for pH control. Each pump has a standard dosing rate of 1.5 ml per second.
Connection and Expansion Options
- The C30 connects directly to the controller via the left UTP port (bottom side).
- The right UTP port is used for expansion with a C10 (1 pump) or a C20 (2 pumps).
- Mechanical linking is done via the side slide rail, and electrical connection via the included 50 cm UTP cable.
Pump numbers in the controller menu:
- C30 only: Pump 1, 2, and 3
- C30 + C10: Pump 1 to 4
- C30 + C20: Pump 1 to 5
Maximum: 5 EC pumps + 1 pH pump per controller.
Manual Operation
Each pump has a manual priming button, ideal for filling or emptying the tubing during setup or maintenance.
What's in the Box
- 1× C30 dosing unit (3 pumps)
- 3× Tubing (3 meters each)
- 1× UTP cable (150 cm) for controller connection
- 1× UTP cable (50 cm) for expansion
- 1× International power adapter
See the diagram below for setup and connection options.
Specificaties
C30 pump unit 3x peristaltic pump set for nutrient dosing
- Shipped within 1 workday
- Customers rate us with 9,2/10
- World wide shipping
|
Individual flow rate |
90 ml per 60 seconds ( depending on the temp and viscosity of the liquid ) |
| Opperation temp | 5°C - 50°C (41°F - 122°F) |
| Noise level | <60 DB |
| Power Supply | AC85~260V, 50~60Hz, with standard UK/EU/ AU/US plugs |
| Power | 6 W |
| Rated voltage | 12V |
| Peristaltic tube lifetime | 1000 Hours |
| Motor lifetime | 800 Hours |
| Dimensions | 197 x 159 x 100 mm |
| Weight | 706 gram |
Covered
- This device is warranted against defects in materials and workmanship for a period of one year. The electrode is warranted for six months.
- The warranty will be effective from the purchase date by the consumer. This warranty rule doesn’t apply to distributors, please contact your sales agent for more warranty details applied to distributors.
- Provide a proof of purchase (via receipt) when applying for the warranty.
- For warranty service, contact your purchase point.
- During the warranty period, the product will be repaired or replaced, if the defect is due to the state of materials and workmanship. during the time of purchase.
- After the repair of your product, the warranty will not be prolonged.
- If the same product isn’t available anymore, we will replace your product with a similar product.
Not covered
- For each product we have a troubleshooting warranty video available. In this video we provide more details on what isn’t covered by warranty for your purchased item.
- The product is obviously used and full of dirt and damage.
- Broken glassware and water damage outside of warranty.
- Damage and faults by inaccurate use of product and maintenance care.
- Damage by weather.
- Damage by use of parts from other brands than Aqua Master Tools.
- Damage by repairs done by other than Aqua Master Tools authorized dealers.
Customisable with modular pumps
The C800 Pro Controller is fully modular and can be configured to meet the user’s specific needs.
Connecting the pH Dosing Pump
The graphic below shows how to connect the pH dosing pump (C10) to the left UTP output of the controller.
Note: This output is dedicated to pH control. It enables automatic dosing of either a pH-lowering or pH-raising solution. The controller menu allows you to select whether the pump doses for pH up or pH down. If needed, the controller can also be used solely for pH regulation.
Connecting a Single Nutrient Dosing Pump
The graphic illustrates how to connect a single C10 dosing pump to the right UTP output of the controller.
This setup enables dosing of one nutrient type. The controller can be used as a standalone nutrient controller or in combination with pH control.
Connecting Two Nutrient Dosing Pumps
The graphic shows how the dual dosing pump unit (C20) connects to the right UTP output of the controller.
This setup allows for two different nutrients to be dosed. The controller can manage EC levels independently or together with pH control.
Connecting Three Nutrient Dosing Pumps
The graphic illustrates how to connect the triple dosing pump unit (C30) to the right UTP output of the controller.
This configuration supports dosing three different nutrients. The controller can be used for nutrient dosing only or combined with pH control for full automation.
Connecting Four Nutrient Dosing Pumps (C30 + C10)
In this setup, the graphic shows the C30 connected to the right UTP output, with the C10 added as an extension.
This allows for dosing four different nutrients. The controller can operate as a standalone nutrient system or in combination with pH regulation for fully automated nutrient and pH management.
Connecting Five Nutrient Dosing Pumps (C30 + C20)
The graphic below shows the C30 connected to the right UTP output, with the C20 added as an extension.
This setup enables dosing of five different nutrients. The controller can function independently for nutrient control or in combination with the pH controller for fully automated EC and pH regulation.
