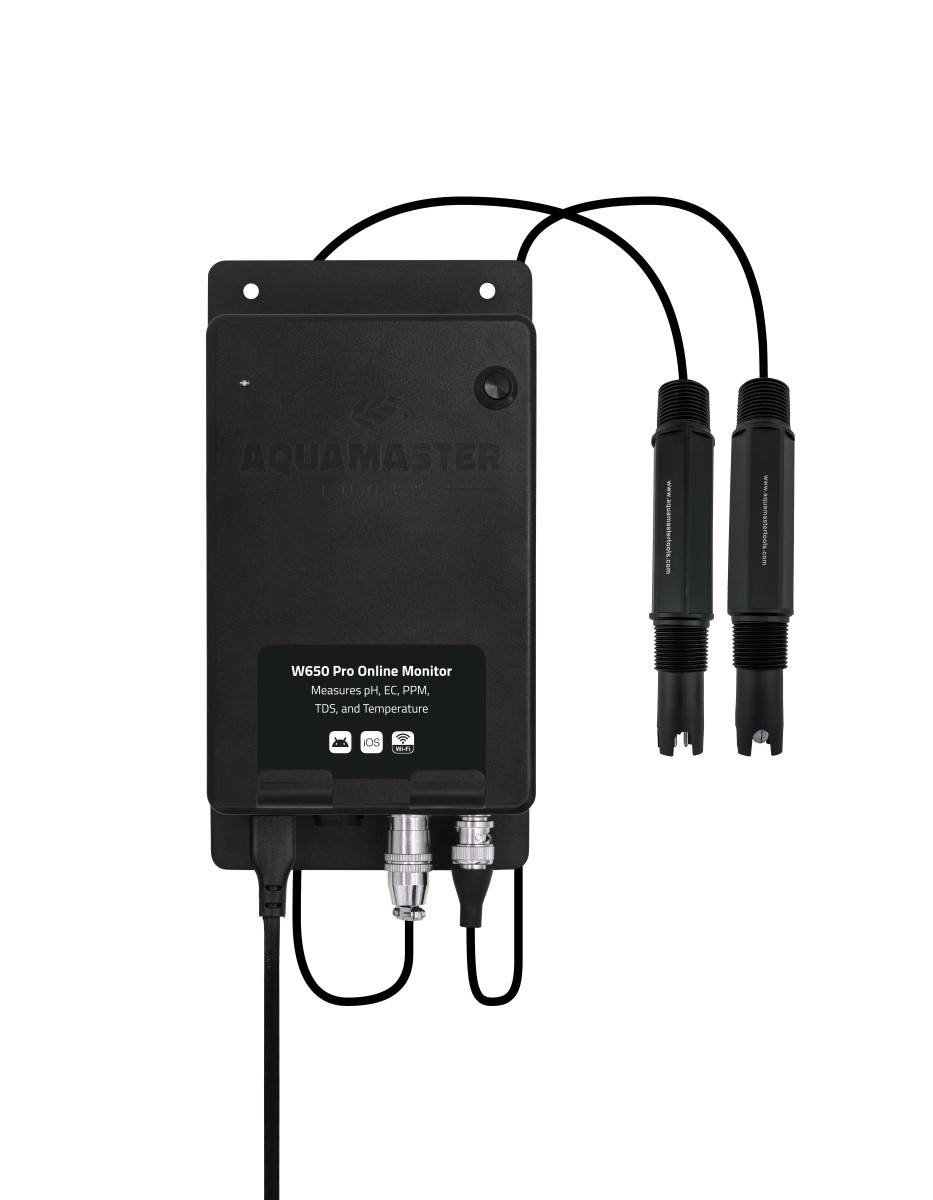

W650 Inline Online pH, EC, PPM, TDS & Temperature Meter
The W650 Inline offers the same advanced measurement capabilities and app functionality as the standard W650, but is specifically designed for direct installation into a pipeline. The inline electrodes feature a 3/4" threaded connection, allowing them to be screwed directly into a 3/4" tapping saddle. This enables accurate and continuous measurements directly in flowing water, without the need for a separate measurement chamber. Like the standard W650, the W650 Inline measures pH, EC, PPM, TDS, and temperature in real time and transmits all data via Wi-Fi to the Aqua Master Tools app. All inline electrodes are fully replaceable and designed to withstand water pressure up to 6 bar, making them suitable for pressurised pipelines and dosing systems.
Key features
- Continuous inline monitoring of pH, EC, PPM, TDS, and temperature
- Direct installation into pipelines using a 3/4" tapping saddle
- 3/4" threaded inline electrodes for easy mounting

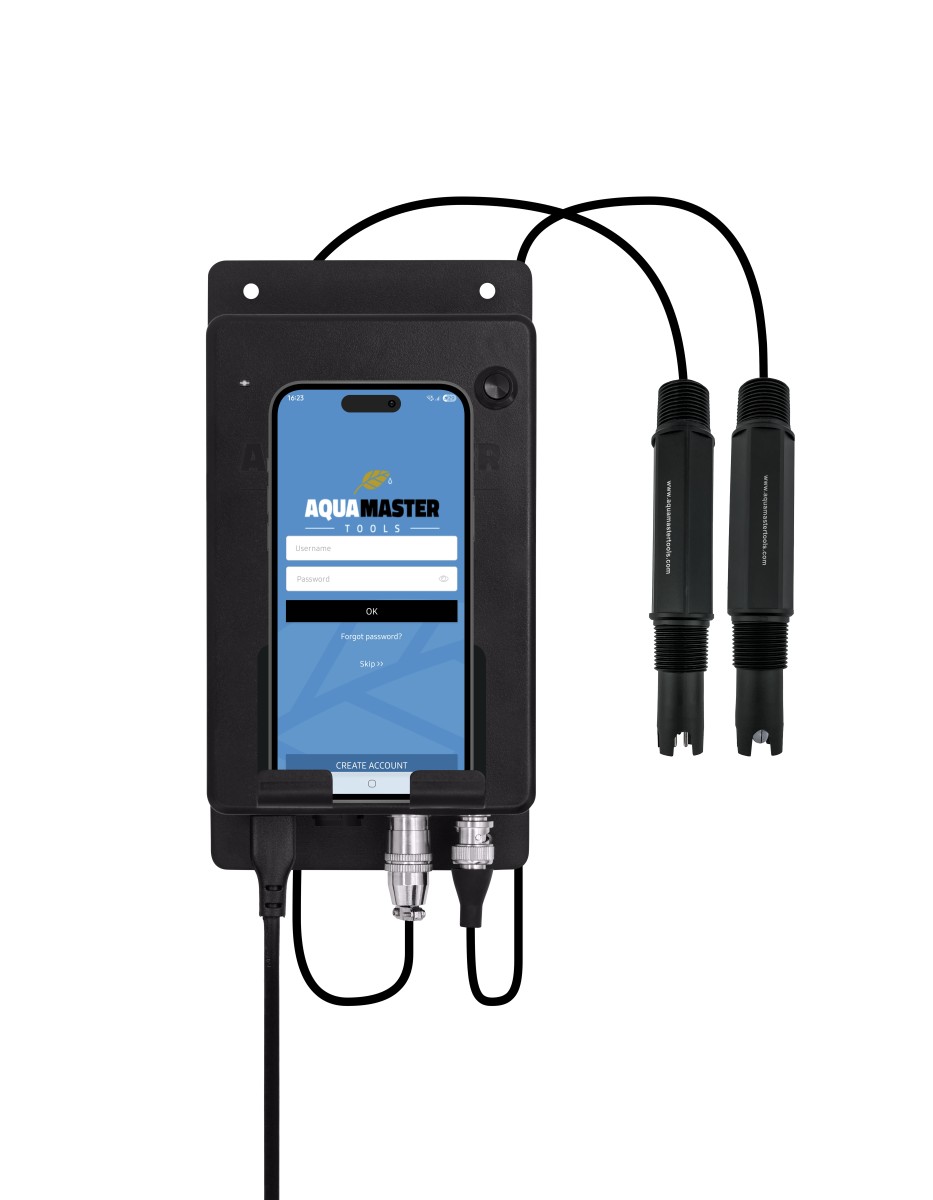

- Real-time data available anywhere via Wi-Fi and app
- High and low alarms for all parameters
- Guided calibration and calibration reminders
- Unlimited inline devices can be managed in one app
- Compatible with other Aqua Master Tools devices
- Automatic temperature compensation
- Fully replaceable inline electrodes, rated up to 6 bar water pressure
App functionality
The W650 Inline uses the same Aqua Master Tools app and offers identical functionality:
- Live monitoring of all parameters
- Historical data viewing up to 1 year
- Alarm settings for pH, EC, PPM, TDS, and temperature
- Push notifications for alarms
- Guided calibration directly in the app
- Device naming and internal notes
- Central management of multiple inline and non-inline devices
-
Applications
The W650 Inline is ideal for applications such as:
- Inline dosing systems
- Irrigation and fertigation lines
- Water treatment and filtration systems
- Industrial process water monitoring
- Continuous flow applications where direct pipeline measurement is required
( This product does not have a built-in display and must be connected to the user’s mobile phone or tablet via the app )
Specificaties
W650 pro Online - Inline pH EC PPM TDS Temp monitor
- Shipped within 1 workday
- Customers rate us with 9,2/10
- World wide shipping
W650 - Operation and use
W650 - pH calibration
W650 - EC calibration
W650 - Troubleshooting
|
Range |
pH: 0.00~14.00 pH |
| Resolution |
pH: 0.01 or 0.1 pH |
| Accuracy |
pH: ± 0.1 pH |
| PPM scale | 700PPM |
| Features | automatic temp. compensation |
|
Calibration |
pH: 1, 2 or 3 point cal 4.0-7.0-10.0 pH EC: 1 point auto cal 1.4-3.0-12.88 EC |
|
Calibration indicator |
Adjustable calibration indicators |
|
Features |
Low high, pH, EC and temp alarms. history diagram up to 1 year. |
| Power supply |
AC85~260V, 50~60Hz, with standard UK/EU/ AU/US plugs |
| Dimensions | 250 x 110 x 80 mm |
| Waterproof |
IP63 (electrodes are IP67 waterproof) |
|
System requirements |
Android (8.0 or later) or iOS (12 or later) |
| Weight |
600 grams |
|
Max. pressure inline electrode |
6 Bar |
|
Threaded inline electrode |
Screw thread 3/4 male |
 |
User manual |
Covered
- This device is warranted against defects in materials and workmanship for a period of one year. The electrode is warranted for six months.
- The warranty will be effective from the purchase date by the consumer. This warranty rule doesn’t apply to distributors, please contact your sales agent for more warranty details applied to distributors.
- Provide a proof of purchase (via receipt) when applying for the warranty.
- For warranty service, contact your purchase point.
- During the warranty period, the product will be repaired or replaced, if the defect is due to the state of materials and workmanship. during the time of purchase.
- After the repair of your product, the warranty will not be prolonged.
- If the same product isn’t available anymore, we will replace your product with a similar product.
Not covered
- For each product we have a troubleshooting warranty video available. In this video we provide more details on what isn’t covered by warranty for your purchased item.
- The product is obviously used and full of dirt and damage.
- Broken glassware and water damage outside of warranty.
- Damage and faults by inaccurate use of product and maintenance care.
- Damage by weather.
- Damage by use of parts from other brands than Aqua Master Tools.
- Damage by repairs done by other than Aqua Master Tools authorized dealers.
W650 Pro Inline suitablefor inline measurement
